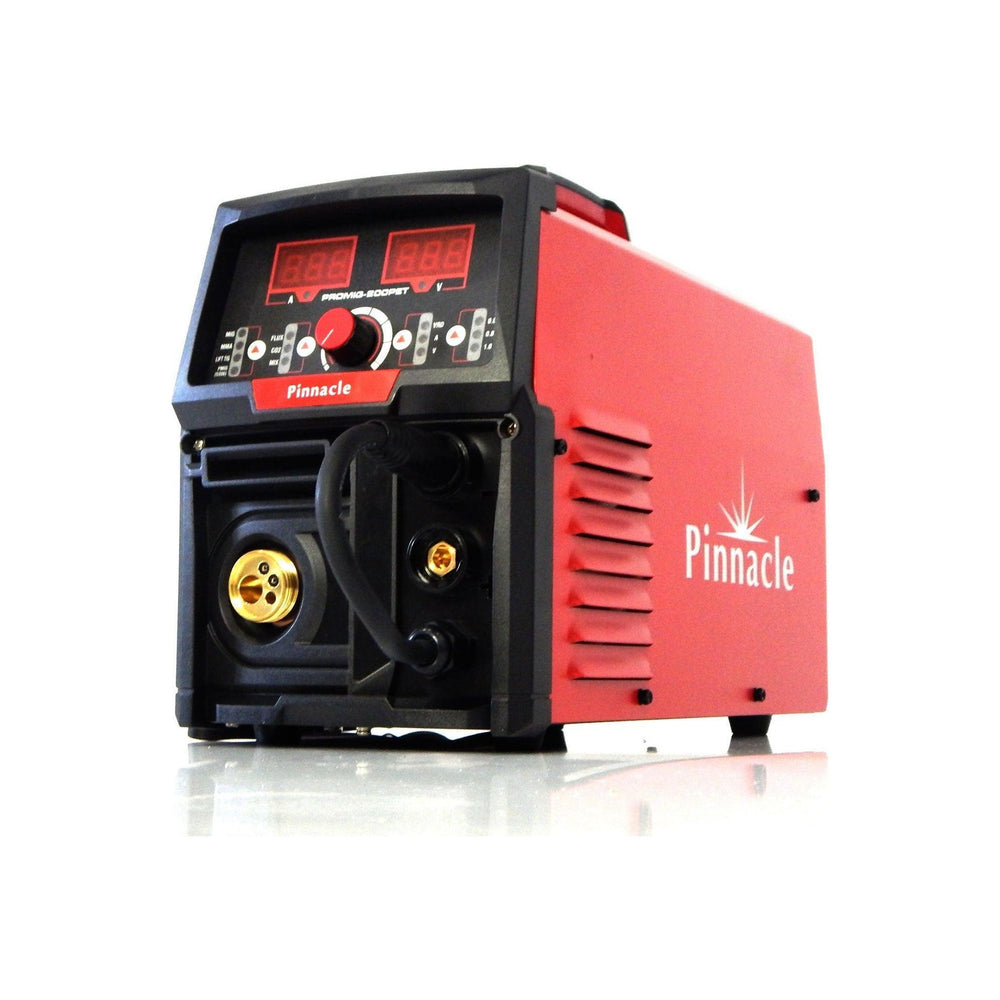

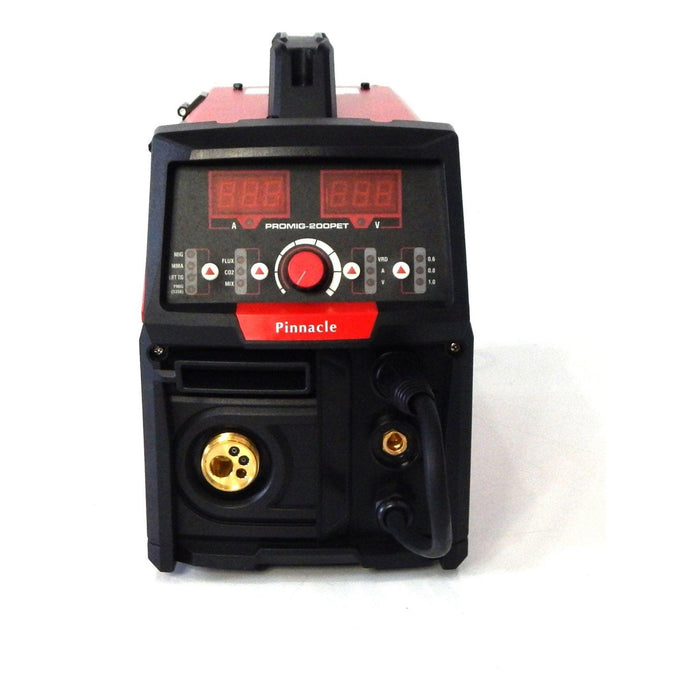

Pinnacle PROMIG 200PET Welding Machine

Sale
R 6,499.00
R 5,395.00
SKU 7-PINPROMIG200

Pinnacle PROMIG 200PET Welding Machine

Features:

- Small and lightweight design for easy mobility and field work

- Protection from overheating, over voltage, under voltage and over current

- Responsive to welding changes to keep steady output of current

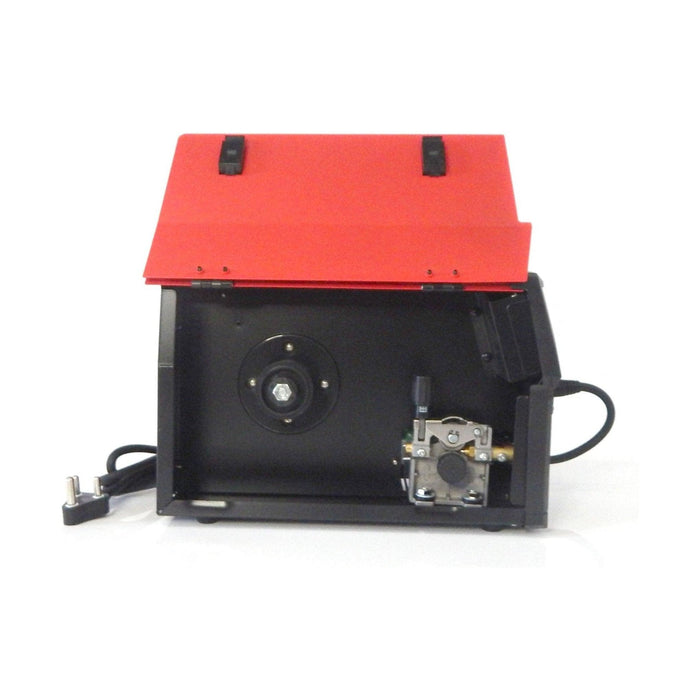

- Automatic Wire Feeder

- Undercut function makes arc-piloting more successful

- Stick function available

- Gasless Flux Core wire compatible

- Compatible with 1Kg and 5Kg Spools

Specifications:

Input Power: 220V

Frequency: 50/60 Hz

Rated Input Current: 35 Amps

Rated Input Capacitance: 7.7 KvA

No-Load Voltage: 62 V

Rated Working Voltage: 25 V

MIG Welding Current: 30-200 Amps

STICK Welding Current: 30-200 Amps

TIG Welding Current: 30-200 Amps

Efficiency: 85%

Power Factor: 0.7

Insulation Class: H

Enclosure Protection: 21S IP

Cooling Type: Fan

Dimensions: 420 x 190 x 330

What's in the Box:

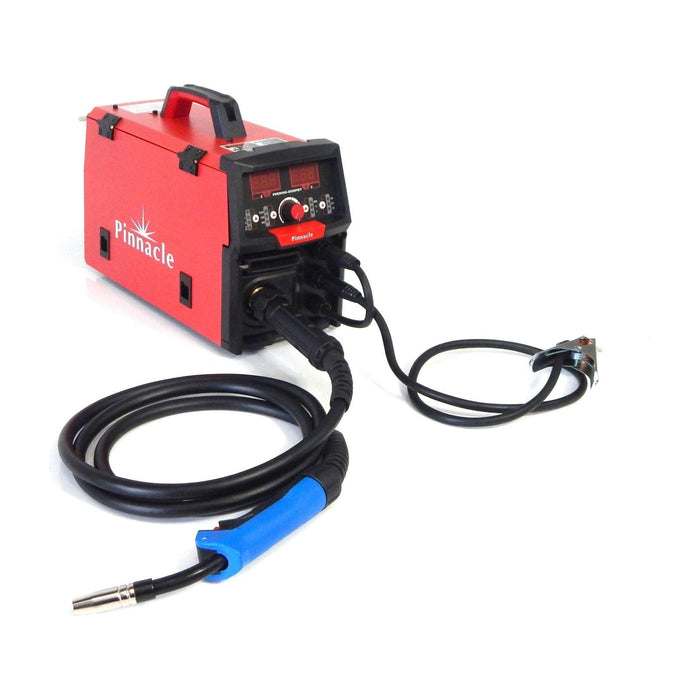

1 x Pinnacle PROMIG 200PET Welder

1 x Earth Clamp & Cable

1 x MIG Torch MB15

1 x Drive Wheel for 0.8-1.0mm Solid Wire





Customer Reviews

Based on 3 reviews
33%
(1)
33%
(1)
33%
(1)
0%
(0)
0%
(0)
J
J.C. (Rustenburg, ZA)

Excellent welder (Even for a novice like me in the welding department).
Like every one else say about Pinnacle welders- The instruction manual is rubbish. Not even worth the paper it is printed on. However by watching a you tube or two video, I were able to replicate quite decent flux core welds and And dare I say decent looking..
I used around 15v setting for reasonably thin material and it worked.
What is annoying however, the welder came with a MB 15 Mig gun and cable of 1,5 meter. This is to short!
I will upgrade to a longer 4m cable soon. (Four stars just because of the manual and short cable)

M
Moraswi Peter Moutlane (Pretoria, ZA)

Just received PROMIG 200. WOW. THANK YOU

W
Willie Nel (Johannesburg, ZA)
Not for beginners

I purchased the welder because of its movability to do structure welding and thin steel plates. With my purchase I included 1mm flux core welding wire as recommended for 2 – 2.5mm steel. The welder does not have any instructions and you must search on the web for information. The welder kept on burning holes through the material and on the 1mm setting you cannot set the Amps lower than 40A. I change the wire setting to 0.6mm, bring the amps down to 35A with 17V and still it burned holes in the material. I spend the whole long weekend to try and get 0.6mm flux core wire without any success, only to get information you need gas. I even send you an e - mail but you did not respond
